HPI Baja 5B Gas Powered 2 Stroke Desert Buggy 1/5 RC Kit

The Baja 5B SBK Includes these Upgrades:

• Front & Rear Sway Bars - Front and rear sway bars improves handling and gives quicker steering response over. Add more tuning possibilities with the #86618 Sway Bar Set!
• Super Heavy Duty Drive Shaft - The 9mm thick Super Heavy Duty Drive Shafts and matching HD drivetrain parts add a serious amount of toughness to the drivetrain, and the rubber boots keep mud and grass from the outdrives and bearings. #104966
• Rear Hub Carrier - The one-piece Rear Hub Carriers are easier to adjust, more durable, and are a lighter weight than the original multi-piece hub carriers. They also allow toe-in adjustments of 0, 1, 2, 3, and 4 degrees to help match the Baja's performance to track conditions. #104781
• 24mm Heavy Duty Front Hex Hub - Replacing the original C-clip front hex hub, the HD Front Hex Hub adds a serious amount of strength to the front suspension and dramatically improves the durability of the HPI Baja 5B. # 105612

INCLUDE ALSO :

• Engine & Exhaust: 23-32cc engine with standard RC large scale mounting points with box or tuned pipe exhaust
• Radio system: Minimum 2-channel radio & transmitter set with voltage & signal failsafe
• Steering servo: Minimum 25kg/cm or 486oz-in rating with 75mm mounting (large scale standard size)
• Throttle servo: Minimum 7kg/cm or 100oz-in rating (1/10th standard size)
• Receiver battery: 6V hump style (2+3) pack with plug to fit receiver
• Battery charger: charger suitable for chosen receiver battery

Kit Specifications:

• Overall Length 817mm
• Height: 255mm
• Width: Front - 460mm; Rear - 480mm
• Tire Track (to center of tires): Front - 395mm; Rear - 400mm
• Wheelbase: 570mm
• Ride Height: 76mm
• Suspension Travel: Front - 95mm; Rear - 100mm
• Weight: 9.6kg (21.3lb)
• Adjustable Camber: front - shims; rear - screw
• Front caster: adjustable with shim 22 / 25.5* / 29 degrees (* stock)
• Toe-in: Front adjustable with tie rod; Rear adjustable with inserts 0-4 degrees (3 degrees stock set-up)
• Double wishbone suspension with adjustable roll center F/R
• Drive system: HD metal gears with sealed gear box (8.382:1 gear ratio)
• Differential: viscous torque control with 4 pinion gears; sealed diff case with silicone oil
• Shock absorber: HD Aluminum coil over shock absorber with fully adjustable preload collar
• Wheel type: 3-piece beadlock design, high impact nylon material with inset heavy-duty metal hex hub

Features:

• Unassembled 1/5th scale Off-Road Buggy ready for your 23-32cc RC engine and electronics

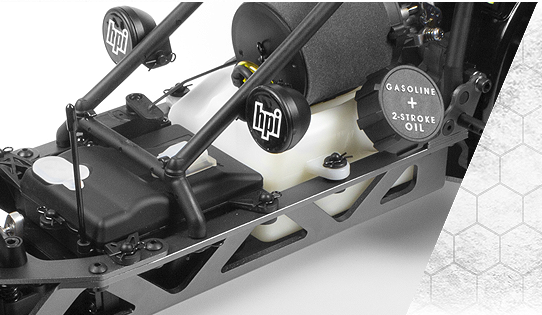

• Aircraft aluminum 6061 T6 monocoque chassis with low CG and adjustable HD shock absorbers on long travel suspension for superior handling
• Viscous torque oil-filled gear differential
• All-terrain tires and beadlock wheels with metal insert hubs
• Quick access to all critical maintenance points
• Dual bellcrank steering and cam type servo saver
• Aluminum rear shock tower and hard plastic skid plates
• Gunmetal anodizing
• Full set of rubber-sealed ball bearings
